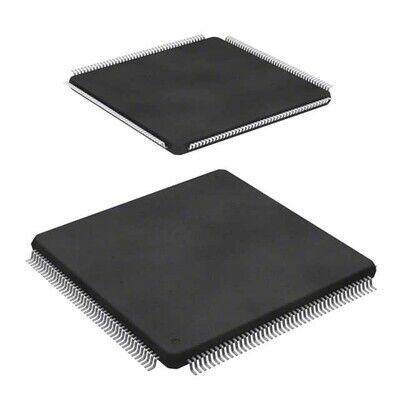

STM32F407IET6 32-Bit MCU 512KB Flash 176-LQFP Entegre Devre
958,25 TL
100,25 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
STM32F407IET6
Stok Adedi
0
Fiyat
17,79 USD + KDV
STM32F407IET6, STMicroelectronics ARM Cortex-M4 tabanlı 32-bit mikrodenetleyicidir. 512KB Flash, 192KB RAM, 168MHz hız ve 140 I/O sunar; CAN, Ethernet, USB OTG, SPI, I2C ve UART/USART gibi arayüzleri destekler. 1.8V-3.6V besleme aralığında çalışır ve 176-LQFP SMD pakettedir.
STM32F407IET6 IC MCU 32BIT 512KB FLASH 176LQFP
| Ürün Kodu | STM32F407IET6 |
| Connectivity | CANbus, DCMI, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 24x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 140 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 176-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | Flash |
| RAM Size | 192K x 8 |
| Speed | 168MHz |
| Supplier Device Package | 176-LQFP (24x24) |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
