Görseller temsilidir, tam özellikler için datasheet'e bakınız.

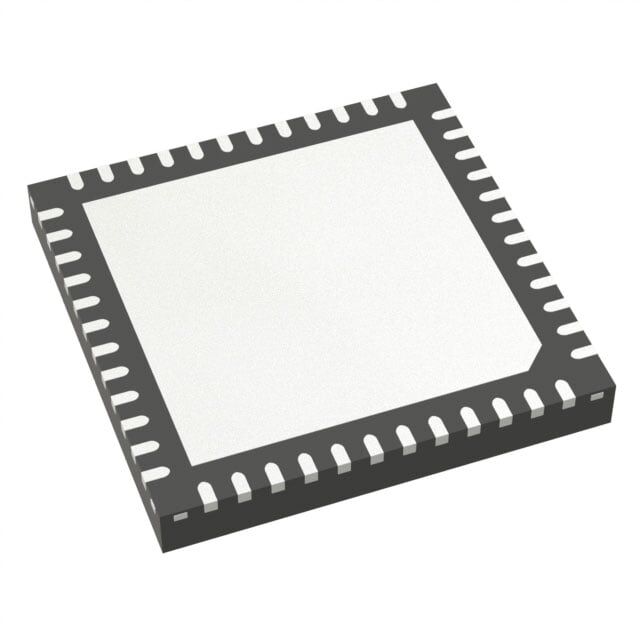

STM32F401CCU6 48-UFQFPN (7x7) Entegre Devre
STM32F401CCU6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F401CCU6 48-UFQFPN (7x7) Entegre Devre Hakkında
STMicroelectronics STM32F401CCU6, ARM Cortex-M4 tabanlı 32-bit MCU’dur; 256KB Flash ve 64KB RAM içerir, 84MHz’e kadar çalışır. I2C, SPI, UART/USART, USB OTG, SDIO gibi arayüzleri ve 10x12-bit ADC desteği bulunur. 1.7V–3.6V besleme aralığında, 48-UFQFN/UFQFPN (7x7) SMD pakettedir.
STM32F401CCU6 IC MCU 32BIT 256KB FLSH 48UFQFPN
| Ürün Kodu | STM32F401CCU6 |
| Connectivity | I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 10x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 36 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 48-UFQFN Exposed Pad |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | Flash |
| RAM Size | 64K x 8 |
| Speed | 84MHz |
| Supplier Device Package | 48-UFQFPN (7x7) |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
