Görseller temsilidir, tam özellikler için datasheet'e bakınız.

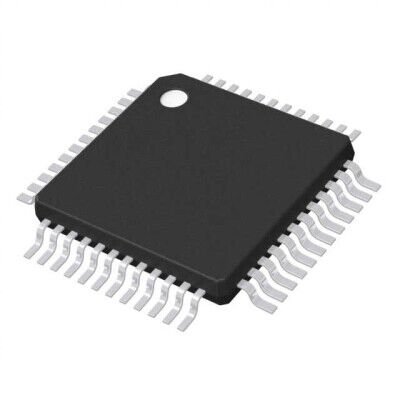

STM32F303CCT6TR 48-LQFP Mikrodenetleyici Entegre Devre
STM32F303CCT6TR
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F303CCT6TR 48-LQFP Mikrodenetleyici Entegre Devre Hakkında
STMicroelectronics STM32F303CCT6TR, ARM Cortex-M4 çekirdekli 32-bit mikrodenetleyicidir. 256KB Flash, 40KB RAM, 72MHz hız ve 37 I/O sunar; 15x12-bit ADC ve 2x12-bit DAC içerir. CAN, I2C, SPI, UART/USART ve USB gibi arayüzleri destekler, 48-LQFP (7x7) SMD pakettedir.
STM32F303CCT6TR IC MCU 32BIT 256KB FLASH 48LQFP
| Ürün Kodu | STM32F303CCT6TR |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 15x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 37 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 48-LQFP |
| Part Status | Active |
| Peripherals | DMA, I²S, POR, PWM, WDT |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | Flash |
| RAM Size | 40K x 8 |
| Speed | 72MHz |
| Supplier Device Package | 48-LQFP (7x7) |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
