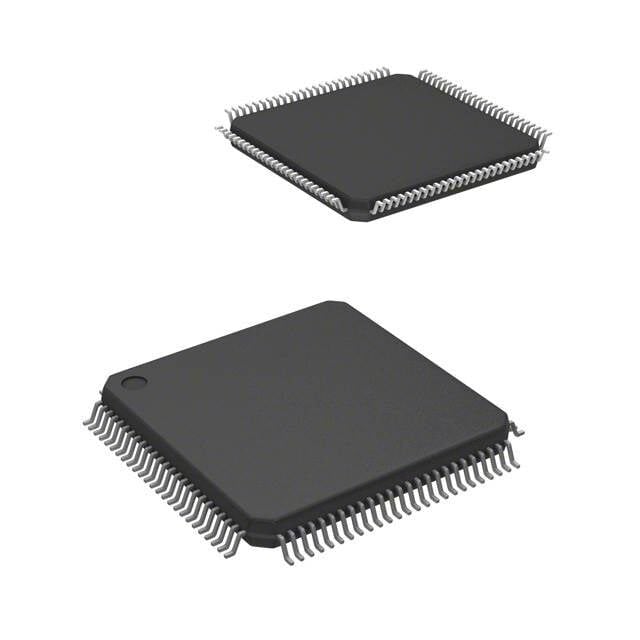

STM32F207VCT6 32-Bit MCU 256KB Flash 100-LQFP Entegre Devre
STM32F207VCT6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F207VCT6 32-Bit MCU 256KB Flash 100-LQFP Entegre Devre Hakkında
STMicroelectronics STM32F207VCT6, ARM Cortex-M3 tabanlı 32-bit mikrodenetleyicidir ve 256KB Flash bellek içerir. 100-LQFP (14x14 mm) SMD pakettedir, 120MHz hızda çalışır ve 1.8V–3.6V besleme aralığını destekler. CAN, Ethernet, USB OTG, UART/USART, SPI ve I²C gibi arayüzlere sahiptir.
STM32F207VCT6 IC MCU 32BIT 256KB FLASH 100LQFP
| Ürün Kodu | STM32F207VCT6 |
| Connectivity | CANbus, Ethernet, I²C, IrDA, LINbus, Memory Card, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Data Converters | A/D 16x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 82 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 100-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | Flash |
| RAM Size | 132K x 8 |
| Speed | 120MHz |
| Supplier Device Package | 100-LQFP (14x14) |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
