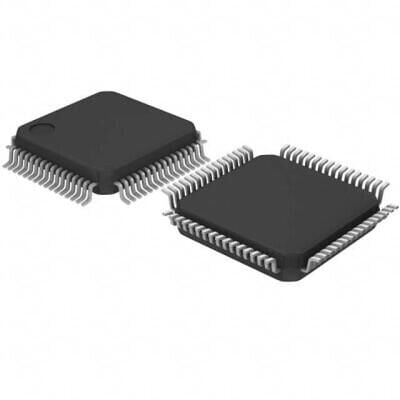

STM32F105RBT6 64-LQFP Mikrodenetleyici Entegre Devre
STM32F105RBT6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F105RBT6 64-LQFP Mikrodenetleyici Entegre Devre Hakkında
STMicroelectronics STM32F105RBT6, ARM Cortex-M3 çekirdekli 32-bit mikrodenetleyicidir. 128KB Flash, 64KB RAM, 72MHz hız ve 51 I/O sunar; CAN, I2C, SPI, UART/USART ve USB OTG gibi arayüzleri destekler. 2V-3.6V besleme aralığında çalışır ve 64-LQFP SMD pakettedir.
STM32F105RBT6 IC MCU 32BIT 128KB FLASH 64LQFP
| Ürün Kodu | STM32F105RBT6 |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Data Converters | A/D 16x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 51 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 64-LQFP |
| Part Status | Active |
| Peripherals | DMA, POR, PWM, Voltage Detect, WDT |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | Flash |
| RAM Size | 64K x 8 |
| Speed | 72MHz |
| Supplier Device Package | - |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
