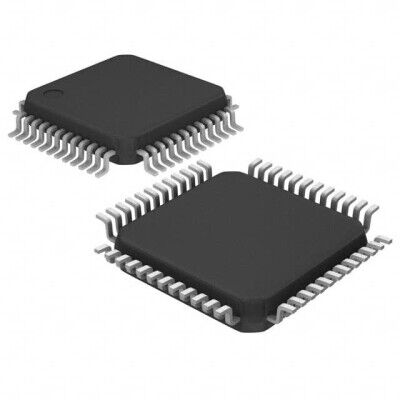

STM32F103C4T6A 48-LQFP ARM Cortex-M3 Entegre Devre
STM32F103C4T6A
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F103C4T6A 48-LQFP ARM Cortex-M3 Entegre Devre Hakkında
STMicroelectronics STM32F103C4T6A, ARM Cortex-M3 çekirdekli 32-bit mikrodenetleyicidir ve 16KB Flash bellek içerir. 72MHz hızda çalışır, 2V-3.6V besleme aralığını destekler ve 26 I/O sunar. CAN, I2C, SPI, UART/USART ve USB gibi haberleşme arayüzleri ile 48-LQFP kılıftadır.
STM32F103C4T6A IC MCU 32BIT 16KB FLASH 48LQFP
| Ürün Kodu | STM32F103C4T6A |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Data Converters | A/D 10x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 26 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 48-LQFP |
| Part Status | Active |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | Flash |
| RAM Size | 6K x 8 |
| Speed | 72MHz |
| Supplier Device Package | - |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
