Görseller temsilidir, tam özellikler için datasheet'e bakınız.

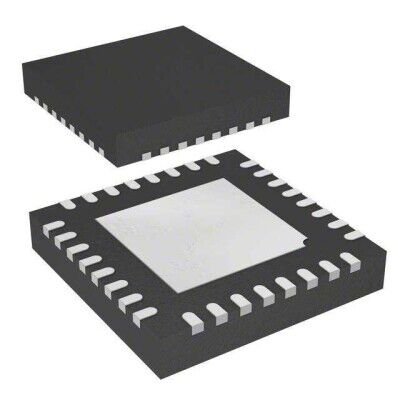

STM32F051K8U6TR 32-UFQFPN (5x5) Entegre Devre
STM32F051K8U6TR
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F051K8U6TR 32-UFQFPN (5x5) Entegre Devre Hakkında
STM32F051K8U6TR, ARM Cortex-M0 çekirdekli 32-bit mikrodenetleyicidir. 64KB Flash, 8KB RAM, 48MHz hız ve 2V-3.6V besleme aralığına sahiptir. 27 I/O, 13x12-bit ADC, 1x12-bit DAC ve I2C, SPI, UART/USART, LIN, IrDA, HDMI-CEC gibi arayüzleri destekler.
STM32F051K8U6TR IC MCU 32BIT 64KB FLASH 32UFQFPN
| Ürün Kodu | STM32F051K8U6TR |
| Connectivity | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit |
| Data Converters | A/D 13x12b; D/A 1x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 27 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 32-UFQFN Exposed Pad |
| Part Status | Active |
| Peripherals | DMA, I²S, POR, PWM, WDT |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | Flash |
| RAM Size | 8K x 8 |
| Speed | 48MHz |
| Supplier Device Package | 32-UFQFPN (5x5) |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
