Görseller temsilidir, tam özellikler için datasheet'e bakınız.

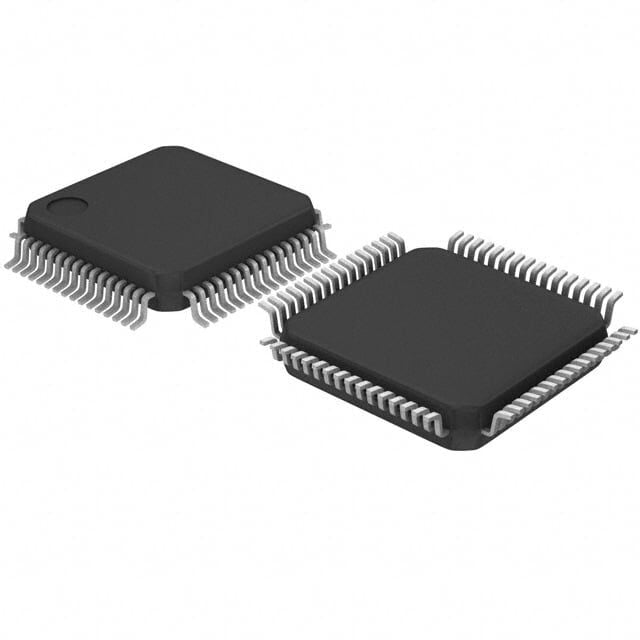

STM32F030R8T6TR 64-LQFP (10x10) Entegre Devre
STM32F030R8T6TR
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F030R8T6TR 64-LQFP (10x10) Entegre Devre Hakkında
STMicroelectronics STM32F030R8T6TR, ARM Cortex-M0 tabanlı 32-bit MCU’dur. 64KB Flash, 8KB RAM, 48MHz hız ve 55 I/O sunar; I2C, SPI ve UART/USART arayüzlerini destekler. 2.4V-3.6V besleme aralığında çalışır ve 64-LQFP (10x10) SMD pakettedir.
STM32F030R8T6TR IC MCU 32BIT 64KB FLASH 64LQFP
| Ürün Kodu | STM32F030R8T6TR |
| Connectivity | I²C, SPI, UART/USART |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit |
| Data Converters | A/D 18x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 55 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 64-LQFP |
| Part Status | Active |
| Peripherals | DMA, POR, PWM, WDT |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | Flash |
| RAM Size | 8K x 8 |
| Speed | 48MHz |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
