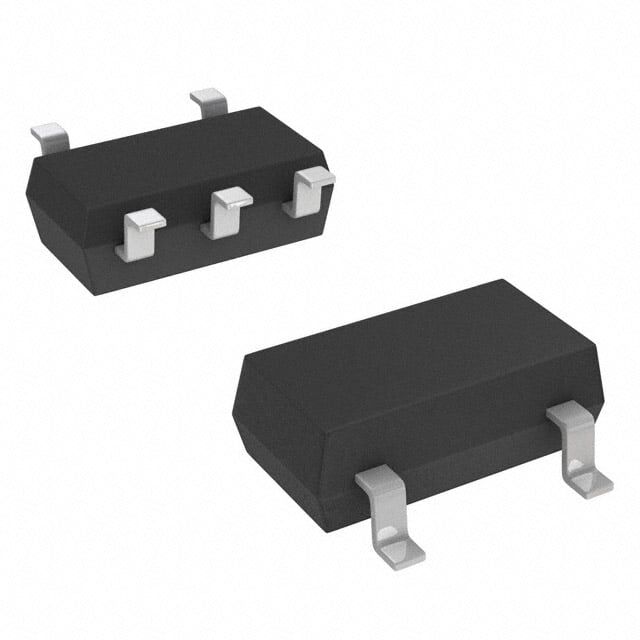

STLQ020C33R SOT-323-5 3.3V 200mA LDO Entegre Devre
41,73 TL
4,37 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
STLQ020C33R
Stok Adedi
0
Fiyat
0,77 USD + KDV
STMicroelectronics STLQ020C33R, 5.5V’a kadar girişten 3.3V sabit çıkış veren 200mA lineer (LDO) regülatördür. Enable kontrol girişine sahiptir ve SOT-323-5 SMD kılıfta sunulur. Aşırı akım ve aşırı sıcaklık korumaları bulunur.
STLQ020C33R IC REG LIN 3.3V 200MA SOT323-5
| Ürün Kodu | STLQ020C33R |
| Control Features | Enable |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 1 µA |
| Current - Supply (Max) | 150 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 52dB ~ 45dB (100Hz ~ 10kHz) |
| Supplier Device Package | SOT-323-5 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.16V @ 200mA |
