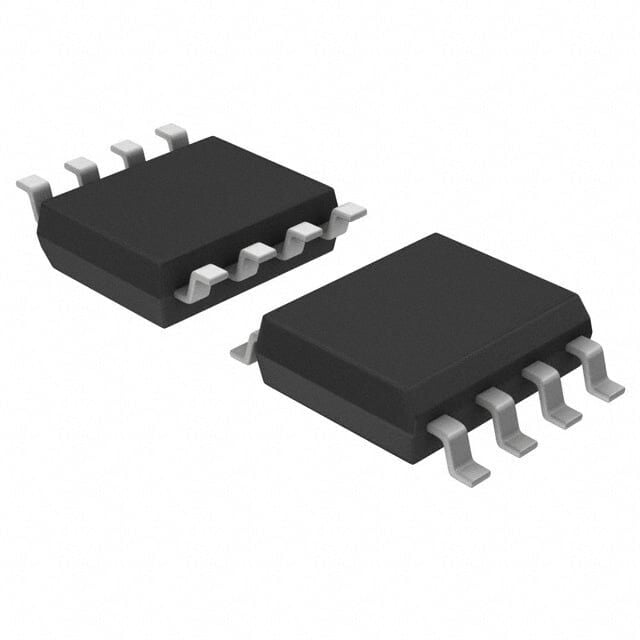

SN74LVC2G00DCTR SM8 2x 2 Giriş NAND Entegre Devre
58,64 TL
6,13 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
SN74LVC2G00DCTR
Stok Adedi
1
Fiyat
1,10 USD + KDV
Texas Instruments SN74LVC2G00DCTR, SM8 kılıfta yüzey montaj 2 kanallı, 2 girişli NAND kapı entegresidir. 1.65V–5.5V besleme aralığında çalışır ve -40°C ile 125°C arasında kullanılabilir. Maksimum yayılma gecikmesi 5V, 50pF koşulunda 3.3ns seviyesindedir.
SN74LVC2G00DCTR IC GATE NAND 2CH 2-INP SM8
| Ürün Kodu | SN74LVC2G00DCTR |
| Current - Output High, Low | 32mA, 32mA |
| Current - Quiescent (Max) | 10 µA |
| Features | - |
| Logic Level - High | 1.7V ~ 2V |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Type | NAND Gate |
| Max Propagation Delay @ V, Max CL | 3.3ns @ 5V, 50pF |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Part Status | Active |
| Supplier Device Package | SM8 |
| Voltage - Supply | 1.65V ~ 5.5V |
SN74LVC2G00DCTR Datasheet dosyasına ulaşmak için tıklayınız.
Bu ürüne ilk yorumu siz yapın!
