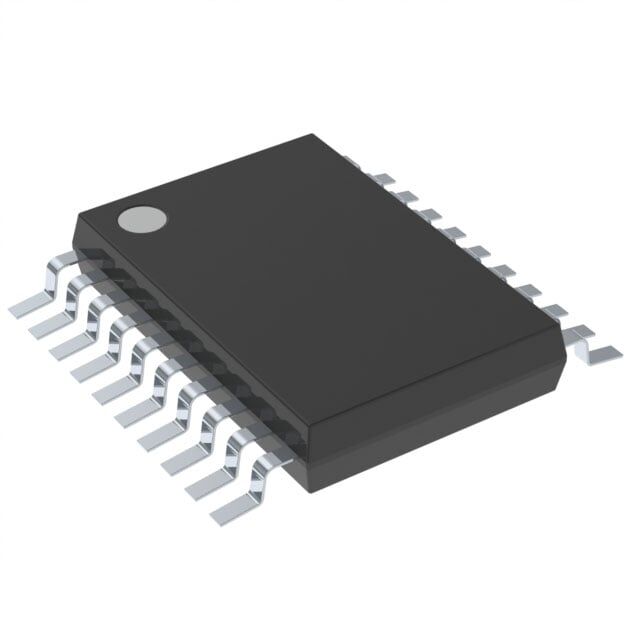

SN74LS374NSR 20-SO 8Bit D-Tipi Flip-Flop Entegre Devre
96,18 TL
10,06 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
SN74LS374NSR
Stok Adedi
1
Fiyat
1,80 USD + KDV
Texas Instruments SN74LS374NSR, 8 bit D-tipi flip-flop entegresidir ve pozitif kenar tetiklemelidir. Tri-state, terslenmemiş çıkış yapısına sahiptir ve 4.75V–5.25V besleme aralığında çalışır. SMD montaj için 20-SO kılıfta sunulur, tipik gecikme 28ns (@5V, 45pF) seviyesindedir.
SN74LS374NSR IC FF D-TYPE SNGL 8BIT 20SO
| Ürün Kodu | SN74LS374NSR |
| Clock Frequency | 50 MHz |
| Current - Output High, Low | 2.6mA, 24mA |
| Current - Quiescent (Iq) | 40 mA |
| Function | Standard |
| Input Capacitance | - |
| Max Propagation Delay @ V, Max CL | 28ns @ 5V, 45pF |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Type | Tri-State, Non-Inverted |
| Part Status | Active |
| Supplier Device Package | 20-SO |
| Trigger Type | Positive Edge |
| Type | D-Type |
| Voltage - Supply | 4.75V ~ 5.25V |
SN74LS374NSR Datasheet dosyasına ulaşmak için tıklayınız.
