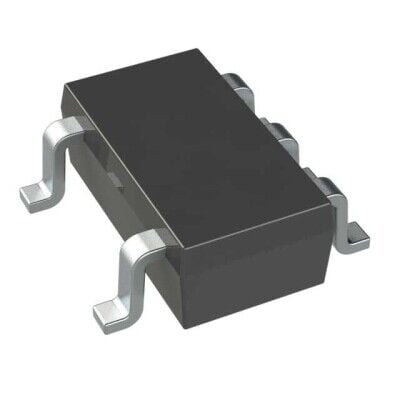

SN74AHC1G02DBVRQ1 SOT-23-5 NOR Kapısı Entegre Devre
20,85 TL
2,18 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
SN74AHC1G02DBVRQ1
Stok Adedi
1
Fiyat
0,39 USD + KDV
Texas Instruments SN74AHC1G02DBVRQ1, SOT-23-5 (SC-74A/SOT-753) kılıfta 1 kanallı, 2 girişli NOR gate entegresidir. 2V–5.5V besleme aralığında çalışır ve yüzey montaja uygundur. Otomotiv sınıfıdır ve AEC-Q100 kalifikasyonuna sahiptir.
SN74AHC1G02DBVRQ1 SC-74A, SOT-753 kılıfta üretilmiştir. NOR Gate IC 1 Channel SOT-23-5
| Ürün Kodu | SN74AHC1G02DBVRQ1 |
| Logic Type | NOR Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Input Logic Level - Low | 0.5V ~ 1.65V |
| Input Logic Level - High | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 6ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
SN74AHC1G02DBVRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
