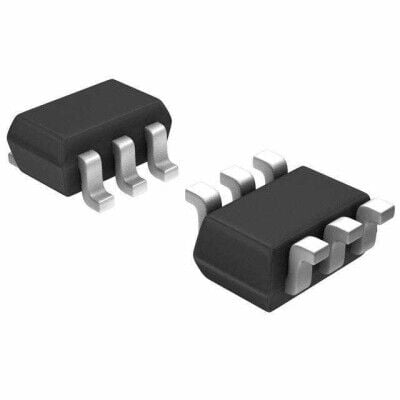

SIP32431DR3-T1GE3 Vishay SC-70-6 Güç Anahtarı Entegre Devre
43,79 TL
4,58 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
SIP32431DR3-T1GE3
Stok Adedi
1
Fiyat
0,82 USD + KDV
Vishay Siliconix SIP32431DR3-T1GE3, high-side P-Channel genel amaçlı güç anahtarı/driver entegresidir. 1.5V-5.5V yük gerilimi aralığında çalışır ve 1.2A maksimum çıkış akımı destekler. SC-70-6 (6-TSSOP, SC-88, SOT-363) SMD kılıftadır; slew rate kontrollü yapı ve ters akım koruması içerir.
SIP32431DR3-T1GE3 6-TSSOP, SC-88, SOT-363 kılıfta üretilmiştir. Power Switch/Driver 1:1 P-Channel 1.2A SC-70-6
| Ürün Kodu | SIP32431DR3-T1GE3 |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.2A |
| Rds On (Typ) | 147mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Reverse Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-6 |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
SIP32431DR3-T1GE3 Datasheet dosyasına ulaşmak için tıklayınız.
