RY610024 8A 24V DC SPDT Röle Hakkında

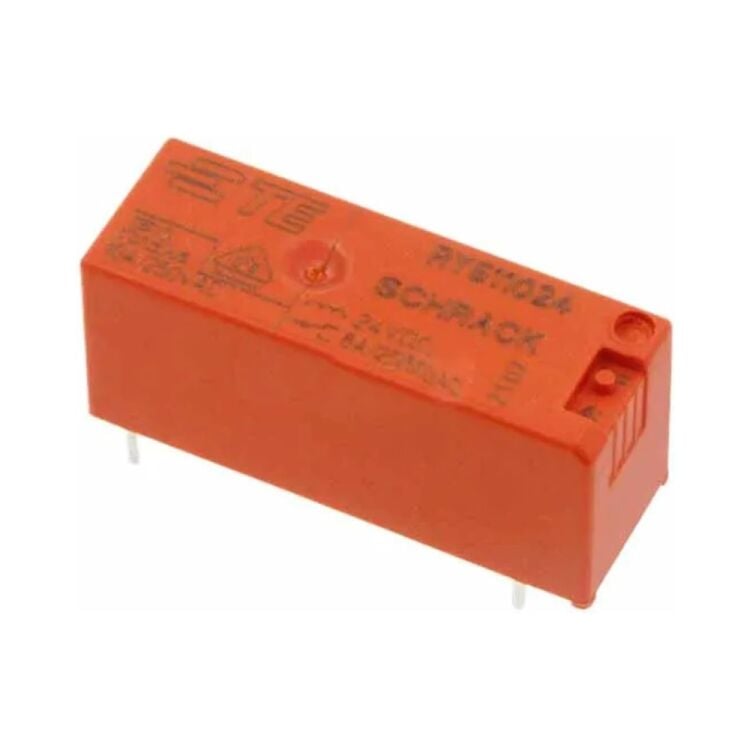

RY610024 8A 24V DC SPDT Röle
| Montaj Tipi | Through Hole |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 70°C |
| Features | - |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Termination Style | PC Pin |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 8 A |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 9 ms |
| Release Time | 5 ms |
| Switching Voltage | 400VAC - Max |
| Coil Current | 10.2 mA |
| Coil Type | Non Latching |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
