Görseller temsilidir, tam özellikler için datasheet'e bakınız.

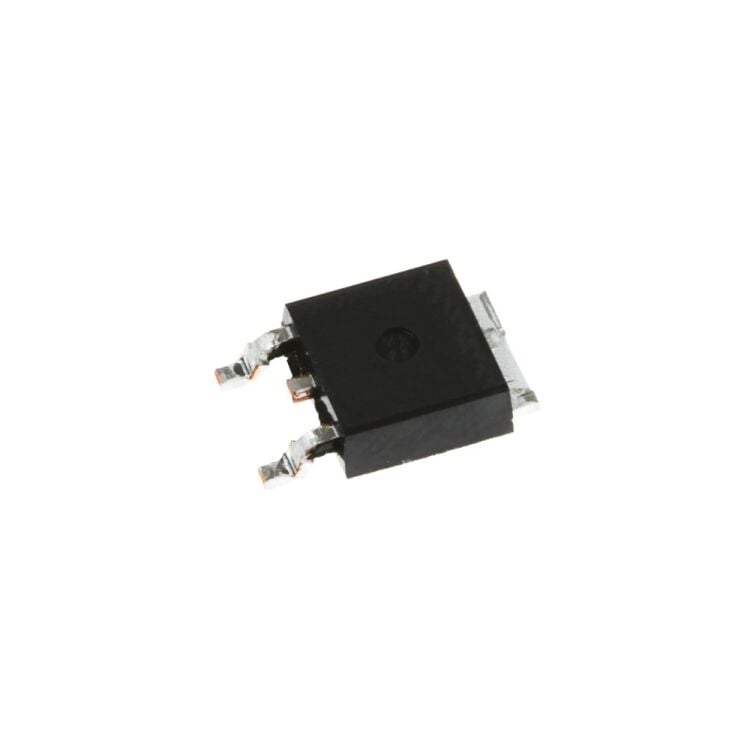

RSD050N10 (050N10) N-Kanal 5A 100V TO-252 DPAK Mosfet Transistör
RSD050N10TL
- Üretici
- ROHM Semiconductor
- Kılıf / Paket
- —
RSD050N10 (050N10) N-Kanal 5A 100V TO-252 DPAK Mosfet Transistör Hakkında
RSD050N10 (050N10) N-Kanal 5A 100V TO-252 DPAK Mosfet Transistör
| Mounting Type : | Surface Mount |
|---|---|
| Operating Temperature : | 150°C (TJ) |
| Package / Case : | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status : | Active |
| Supplier Device Package : | CPT3 |
| Current - Continuous Drain (Id) @ 25°C : | 5A (Ta) |
| Drain to Source Voltage (Vdss) : | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) : | 4V, 10V |
| FET Feature : | - |
| FET Type : | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs : | 14 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds : | 530 pF @ 25 V |
| Power Dissipation (Max) : | 15W (Tc) |
| Rds On (Max) @ Id, Vgs : | 190mOhm @ 5A, 10V |
| Technology : | MOSFET (Metal Oxide) |
| Vgs (Max) : | ±20V |
| Vgs(th) (Max) @ Id : | 2.5V @ 1mA |
