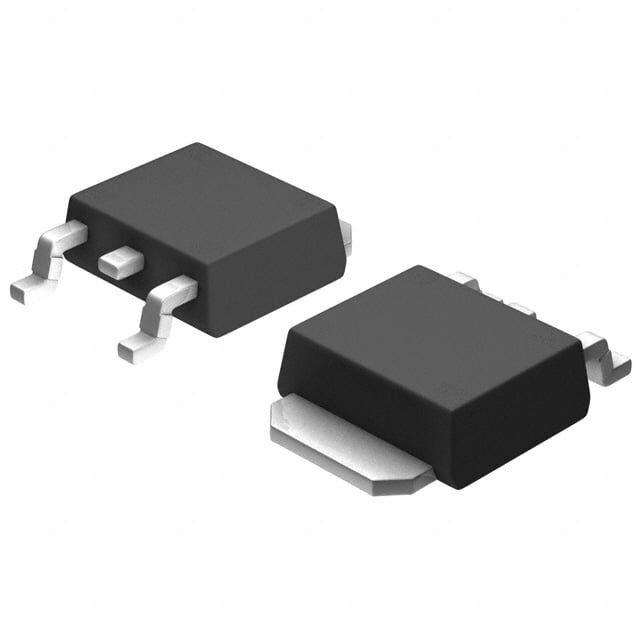

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
Rohm BD750L5FP-CE2 5V 500mA Lineer Regülatör Entegre Devre
BD750L5FP-CE2
- Üretici
- ROHM Semiconductor
- Kategori
- Kılıf / Paket
- —
Rohm BD750L5FP-CE2 5V 500mA Lineer Regülatör Entegre Devre Hakkında
BD750L5FP-CE2, Rohm Semiconductor üretimi 5V sabit çıkışlı, 500mA lineer regülatör entegresidir. 45V’a kadar giriş gerilimi destekler ve TO-252-3 (DPAK) SMD pakette sunulur. Aşırı akım ve aşırı sıcaklık korumaları ile -40°C ile 125°C çalışma aralığına sahiptir.
BD750L5FP-CE2 IC REG LINEAR 5V 500MA TO252-3
| Ürün Kodu | BD750L5FP-CE2 |
| Control Features | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 6 µA |
| Current - Supply (Max) | 15 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 60dB (120Hz) |
| Supplier Device Package | TO-252 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.5V @ 200mA |
BD750L5FP-CE2 Datasheet dosyasına ulaşmak için tıklayınız.
