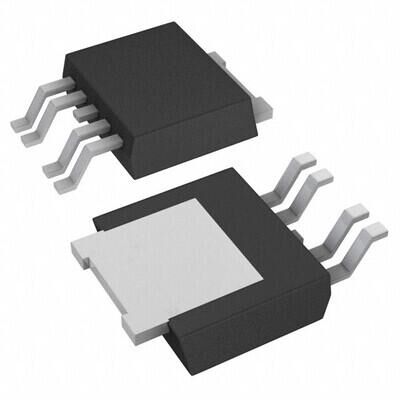

Rohm BD450M5WFPJ-CZE2 5V 500mA Lineer Regülatör Entegre Devre
102,94 TL
10,77 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
BD450M5WFPJ-CZE2
Stok Adedi
1
Fiyat
1,92 USD + KDV
BD450M5WFPJ-CZE2, 42V’a kadar giriş kabul eden, sabit 5V çıkışlı 500mA lineer regülatör entegresidir. Enable kontrol girişine sahiptir ve aşırı akım ile aşırı sıcaklık korumaları bulunur. SMD TO-252-5 (TO252-J5F) pakettedir ve -40°C ile 150°C aralığında çalışır.
BD450M5WFPJ-CZE2 IC REG LINEAR 5V 500MA TO252-J5F
| Ürün Kodu | BD450M5WFPJ-CZE2 |
| Control Features | Enable |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 95 µA |
| Current - Supply (Max) | 175 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 60dB (120Hz) |
| Supplier Device Package | TO252-J5F |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.5V @ 300mA |
