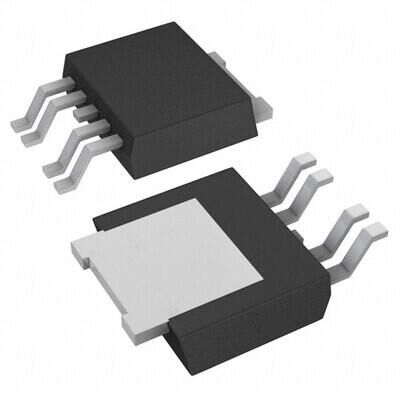

Rohm BD433M5WFPJ-CZE2 3.3V 500mA LDO Regülatör Entegre Devre
122,24 TL
12,79 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
BD433M5WFPJ-CZE2
Stok Adedi
1
Fiyat
2,28 USD + KDV
BD433M5WFPJ-CZE2, Rohm Semiconductor üretimi 3.3V sabit çıkışlı, 500mA pozitif lineer (LDO) regülatör entegresidir. 42V maksimum giriş gerilimi, Enable kontrol pini ve aşırı akım/aşırı sıcaklık korumaları bulunur. SMD TO-252-5 (TO252-J5F) pakettedir ve -40°C ile 150°C aralığında çalışır.
BD433M5WFPJ-CZE2 IC REG LIN 3.3V 500MA TO252-J5F
| Ürün Kodu | BD433M5WFPJ-CZE2 |
| Control Features | Enable |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 95 µA |
| Current - Supply (Max) | 175 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 60dB (120Hz) |
| Supplier Device Package | TO252-J5F |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.75V @ 300mA |
Bu ürüne ilk yorumu siz yapın!
