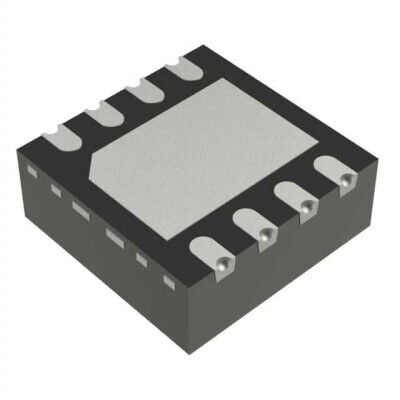

OPA2387DSGT Texas Instruments 8-WSON (2x2) Entegre Devre
296,61 TL
31,03 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
OPA2387DSGT
Stok Adedi
0
Fiyat
5,54 USD + KDV
Texas Instruments OPA2387DSGT, zero-drift tipinde çift kanallı (2 devre) operasyonel yükselteçtir. Rail-to-rail tek uçlu çıkış yapısına sahiptir ve 1.7 V ile 5.5 V besleme aralığında çalışır. 8-WFDFN exposed pad (8-WSON 2x2) SMD kılıftadır.
OPA2387DSGT 8-WFDFN Exposed Pad kılıfta üretilmiştir. Zero-Drift Amplifier 2 Circuit Single Ended, Rail-to-Rail 8-WSON (2x2)
| Ürün Kodu | OPA2387DSGT |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 2 |
| Output Type | Single Ended, Rail-to-Rail |
| Slew Rate | 2.8V/µs |
| Gain Bandwidth Product | 5.7 MHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 0.25 µV |
| Current - Supply | 570µA (x2 Channels) |
| Current - Output / Channel | 55 mA |
| Voltage - Supply Span (Min) | 1.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |
OPA2387DSGT Datasheet dosyasına ulaşmak için tıklayınız.
