Görseller temsilidir, tam özellikler için datasheet'e bakınız.

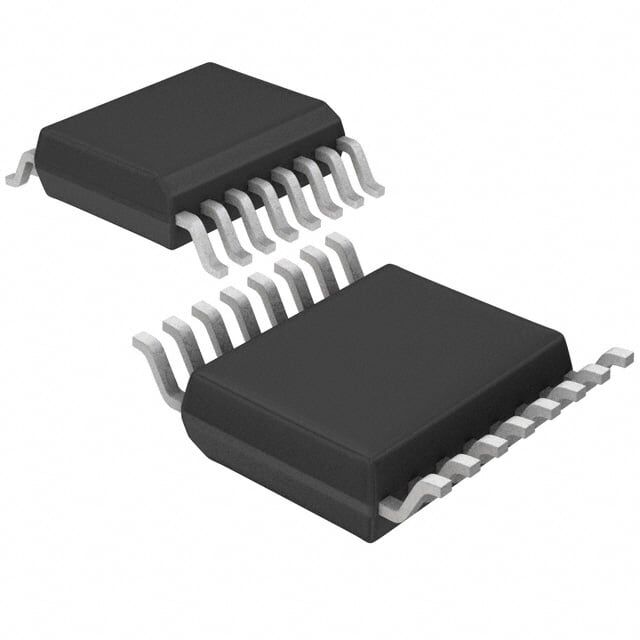

onsemi TL594CDTBR2G 16-TSSOP PWM Regülatör Kontrol Entegre Devre
TL594CDTBR2G
- Üretici
- onsemi
- Kategori
- Kılıf / Paket
- —
onsemi TL594CDTBR2G 16-TSSOP PWM Regülatör Kontrol Entegre Devre Hakkında
TL594CDTBR2G, buck ve push-pull topolojilerini destekleyen PWM regülatör kontrol entegresidir. 7V-40V besleme aralığında çalışır, 300kHz anahtarlama frekansına ve %96 maksimum duty cycle değerine sahiptir. SMD 16-TSSOP pakettedir ve -40°C ile 85°C arasında çalışır.
TL594CDTBR2G IC REG CTRLR BCK/PSH-PLL 16TSSOP
| Ürün Kodu | TL594CDTBR2G |
| Clock Sync | No |
| Control Features | Dead Time Control, Frequency Control |
| Duty Cycle (Max) | 96% |
| Frequency - Switching | 300kHz |
| Function | Step-Down, Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Part Status | Active |
| Serial Interfaces | - |
| Supplier Device Package | 16-TSSOP |
| Synchronous Rectifier | Yes |
| Topology | Buck, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 40V |
TL594CDTBR2G Datasheet dosyasına ulaşmak için tıklayınız.
