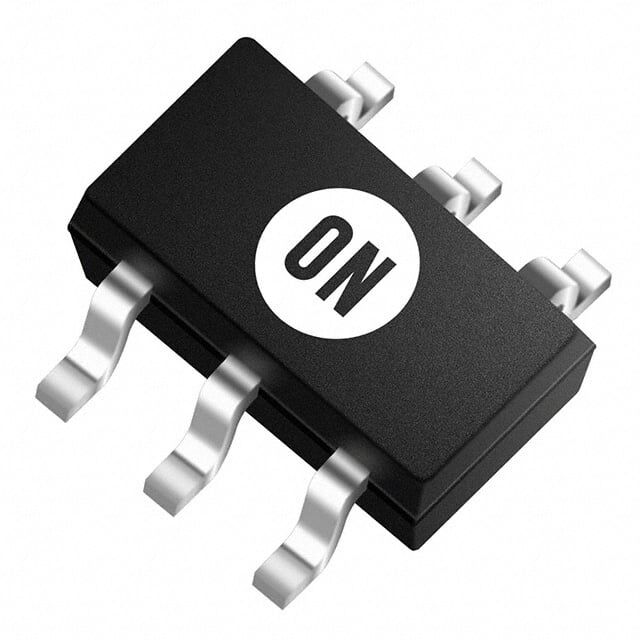

onsemi NLAS4157DFT2G SC-88 SPDT Analog Switch Entegre Devre
NLAS4157DFT2G
- Üretici
- onsemi
- Kılıf / Paket
- —
onsemi NLAS4157DFT2G SC-88 SPDT Analog Switch Entegre Devre Hakkında
NLAS4157DFT2G, onsemi üretimi 1 devreli SPDT (2:1) analog anahtar entegresidir. 1.65V–5.5V tek besleme ile çalışır, maksimum 1.15Ω iletim direncine sahiptir ve -40°C ile 85°C aralığında kullanılabilir. SC-88/SC70-6/SOT-363 SMD pakettedir.
NLAS4157DFT2G IC SWITCH SPDT SC88
| Ürün Kodu | NLAS4157DFT2G |
| -3db Bandwidth | 40MHz |
| Channel Capacitance (CS(off), CD(off)) | 10pF |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Charge Injection | 48pC |
| Crosstalk | -57dB @ 1MHz |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.15Ohm |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Part Status | Active |
| Supplier Device Package | SC-88/SC70-6/SOT-363 |
| Switch Circuit | SPDT |
| Switch Time (Ton, Toff) (Max) | 20ns, 15ns |
| Voltage - Supply, Dual (V±) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
