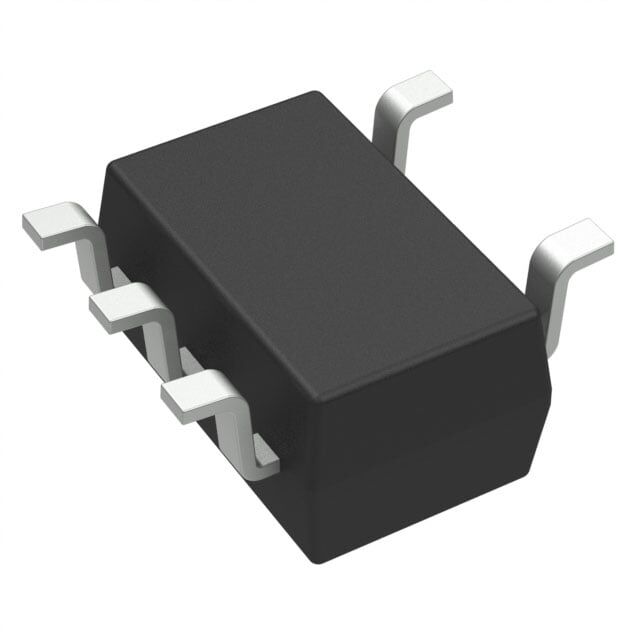

onsemi NCV8711ASN500T1G SOT-23-5 5V 100mA Entegre Devre
58,05 TL
6,07 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCV8711ASN500T1G
Stok Adedi
0
Fiyat
1,08 USD + KDV
NCV8711ASN500T1G, 18V’a kadar girişten sabit 5V çıkış veren 100mA lineer regülatördür. Enable kontrol girişine sahiptir, düşük bekleme akımı (2.5 µA) ile çalışır. Aşırı akım ve aşırı sıcaklık korumaları bulunur, SOT-23-5 (TSOT-23-5) SMD pakettedir.
NCV8711ASN500T1G IC REG LINEAR 5V 100MA 5TSOP
| Ürün Kodu | NCV8711ASN500T1G |
| Control Features | Enable |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 2.5 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 80dB ~ 48dB (10Hz ~ 1MHz) |
| Supplier Device Package | 5-TSOP |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.355V @ 100mA |
NCV8711ASN500T1G Datasheet dosyasına ulaşmak için tıklayınız.
