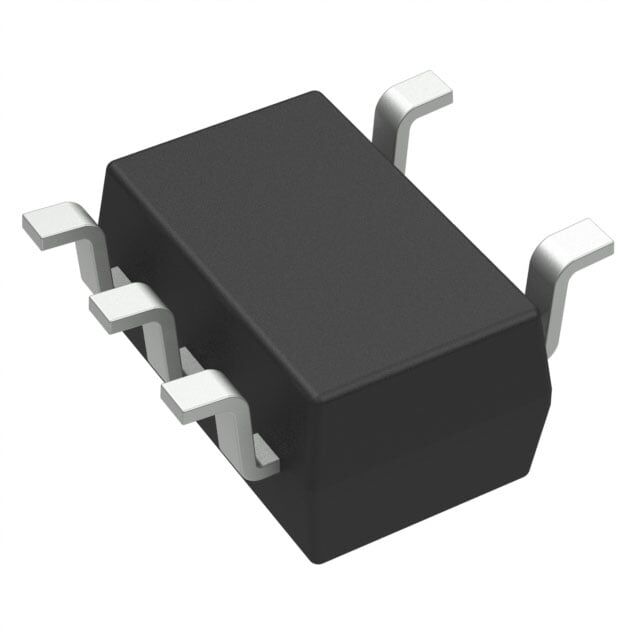

onsemi NCV8163ASN330T1G 3.3V 250mA TSOT-23-5 Entegre Devre
52,44 TL
5,49 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCV8163ASN330T1G
Stok Adedi
0
Fiyat
0,97 USD + KDV
NCV8163ASN330T1G, 5.5V’a kadar girişten sabit 3.3V çıkış veren 250mA lineer regülatördür. Enable pini bulunur, tipik 20µA düşük boşta akım ve 250mA’de 0.175V maksimum dropout değerine sahiptir. TSOT-23-5 (SOT-23-5 Thin) SMD pakettedir ve aşırı akım/aşırı sıcaklık korumaları içerir.
NCV8163ASN330T1G IC REG LINEAR 3.3V 250MA 5TSOP
| Ürün Kodu | NCV8163ASN330T1G |
| Control Features | Enable |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 92dB ~ 60dB (100Hz ~ 100kHz) |
| Supplier Device Package | 5-TSOP |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.175V @ 250mA |
NCV8163ASN330T1G Datasheet dosyasına ulaşmak için tıklayınız.
