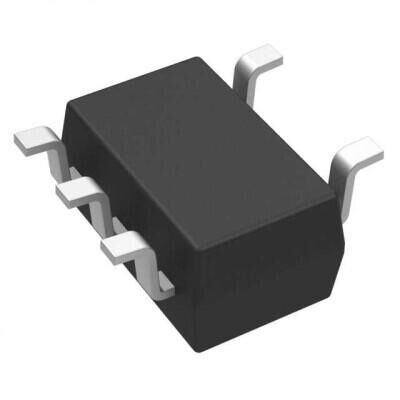

onsemi NCV8163ASN180T1G TSOT-23-5 1.8V 250mA Entegre Devre
52,49 TL
5,49 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCV8163ASN180T1G
Stok Adedi
0
Fiyat
0,97 USD + KDV
NCV8163ASN180T1G, onsemi üretimi 1.8V sabit çıkışlı, 250mA lineer regülatör entegresidir. Enable kontrol girişine sahiptir ve TSOT-23-5 (SOT-23-5 Thin) SMD pakette sunulur. Aşırı akım ve aşırı sıcaklık korumaları ile -40°C ile 125°C çalışma aralığını destekler.
NCV8163ASN180T1G IC REG LINEAR 1.8V 250MA 5TSOP
| Ürün Kodu | NCV8163ASN180T1G |
| Control Features | Enable |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 92dB ~ 60dB (100Hz ~ 100kHz) |
| Supplier Device Package | 5-TSOP |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage Dropout (Max) | 0.28V @ 250mA |
NCV8163ASN180T1G Datasheet dosyasına ulaşmak için tıklayınız.
