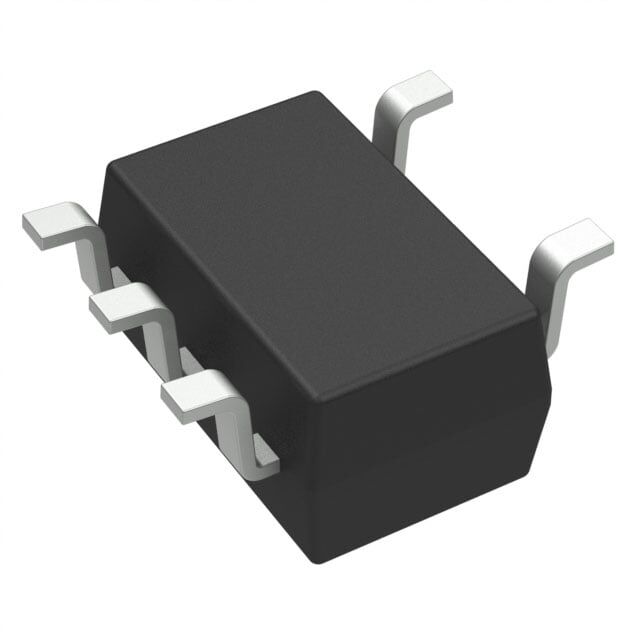

onsemi NCV8161BSN330T1G 3.3V 450mA TSOT-23-5 Entegre Devre
79,87 TL
8,36 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCV8161BSN330T1G
Stok Adedi
0
Fiyat
1,48 USD + KDV
NCV8161BSN330T1G, 5.5V maksimum girişe sahip 3.3V sabit çıkışlı 450mA lineer regülatör entegresidir. Enable kontrol girişi bulunur, düşük bekleme akımı 23 µA seviyesindedir. Aşırı akım ve aşırı sıcaklık korumaları içerir, TSOT-23-5 (SOT-23-5) SMD pakettedir.
NCV8161BSN330T1G IC REG LINEAR 3.3V 450MA 5TSOP
| Ürün Kodu | NCV8161BSN330T1G |
| Control Features | Enable |
| Current - Output | 450mA |
| Current - Quiescent (Iq) | 23 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 91dB ~ 48dB (100Hz ~ 100kHz) |
| Supplier Device Package | 5-TSOP |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.305V @ 450mA |
NCV8161BSN330T1G Datasheet dosyasına ulaşmak için tıklayınız.
