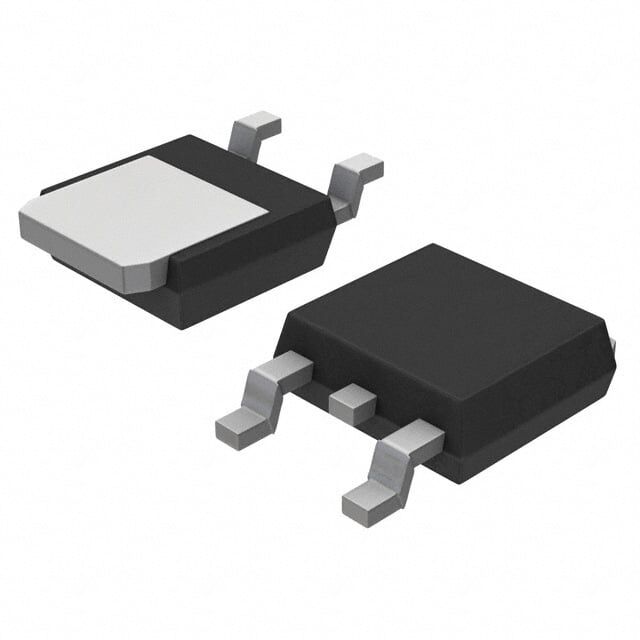

onsemi NCV78M05BDTRKG 5V 500mA DPAK Entegre Devre
45,21 TL
4,73 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCV78M05BDTRKG
Stok Adedi
0
Fiyat
0,84 USD + KDV
NCV78M05BDTRKG, 35V’a kadar girişten sabit 5V pozitif çıkış veren lineer voltaj regülatörüdür. 500mA çıkış akımı destekler ve yüzey montaj DPAK (TO-252-3) kılıftadır. Aşırı sıcaklık ve kısa devre koruması bulunur, çalışma sıcaklığı -40°C ile 125°C arasındadır.
NCV78M05BDTRKG IC REG LINEAR 5V 500MA DPAK
| Ürün Kodu | NCV78M05BDTRKG |
| Control Features | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Temperature, Short Circuit |
| PSRR | 80dB (120Hz) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | - |
NCV78M05BDTRKG Datasheet dosyasına ulaşmak için tıklayınız.
