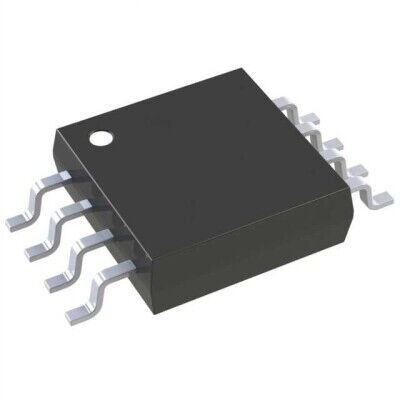

onsemi NCS21872DMR2G 8-MSOP Çift Zero-Drift Op-Amp Entegre Devre
51,31 TL
5,37 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCS21872DMR2G
Stok Adedi
0
Fiyat
0,96 USD + KDV
NCS21872DMR2G, onsemi üretimi çift kanallı (2 devre) zero-drift operasyonel yükselteç entegresidir ve 8-MSOP SMD pakettedir. 1.8 V–5.5 V besleme aralığında çalışır, rail-to-rail çıkış sunar; giriş ofseti 6 µV ve giriş bias akımı 60 pA seviyesindedir. Kazanç bant genişliği 270 kHz, slew rate 0.1 V/µs ve çalışma sıcaklığı -40°C ile 125°C aralığındadır.
NCS21872DMR2G IC OPAMP ZER-DRIFT 2CIRC 8MSOP
| Ürün Kodu | NCS21872DMR2G |
| -3db Bandwidth | - |
| Amplifier Type | Zero-Drift |
| Current - Input Bias | 60 pA |
| Current - Output / Channel | 11 mA |
| Current - Supply | 28µA |
| Gain Bandwidth Product | 270 kHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Type | Rail-to-Rail |
| Part Status | Active |
| Slew Rate | 0.1V/µs |
| Supplier Device Package | 8-MSOP |
| Voltage - Input Offset | 6 µV |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 1.8 V |
NCS21872DMR2G Datasheet dosyasına ulaşmak için tıklayınız.
