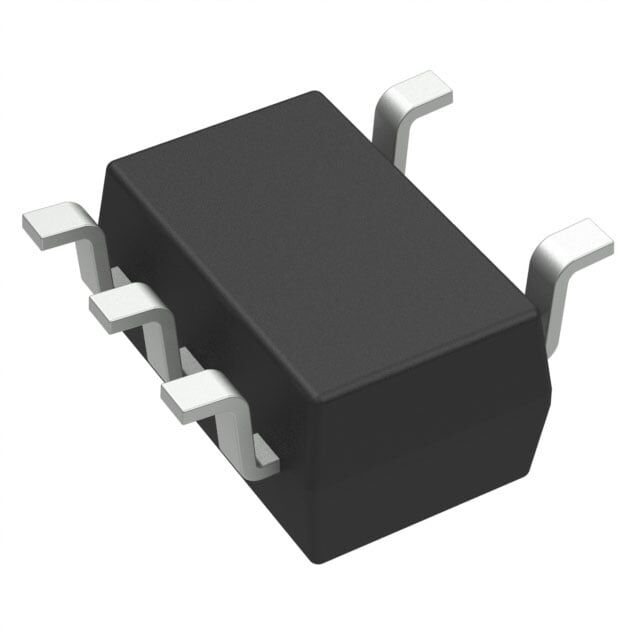

onsemi NCP716BCSN330T1G SOT-23-5 3.3V 150mA LDO Entegre Devre
62,12 TL
6,50 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCP716BCSN330T1G
Stok Adedi
0
Fiyat
1,15 USD + KDV
NCP716BCSN330T1G, onsemi üretimi 3.3V sabit çıkışlı 150mA LDO lineer regülatördür. 24V’a kadar giriş gerilimi destekler, tipik 4.7 µA düşük boşta akım ve 54 dB PSRR (1 kHz) değerine sahiptir. Aşırı akım, aşırı sıcaklık ve UVLO korumaları bulunur; SOT-23-5/TSOT-23-5 SMD pakettedir.
NCP716BCSN330T1G LDO 150MA
| Ürün Kodu | NCP716BCSN330T1G |
| Control Features | - |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 4.7 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 54dB (1kHz) |
| Supplier Device Package | 5-TSOP |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 1.08V @ 150mA |
NCP716BCSN330T1G Datasheet dosyasına ulaşmak için tıklayınız.
