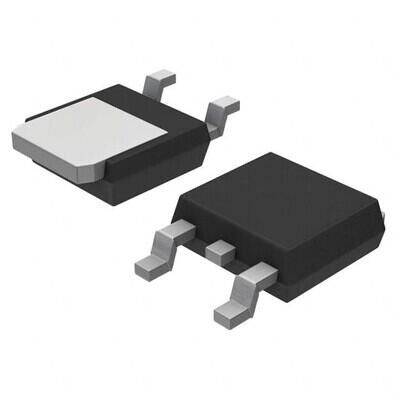

onsemi NCP5501DT33RKG 3.3V 500mA DPAK Entegre Devre
54,06 TL
5,66 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCP5501DT33RKG
Stok Adedi
0
Fiyat
1,00 USD + KDV
NCP5501DT33RKG, 16V’a kadar girişten 3.3V sabit çıkış veren 500mA lineer regülatör entegresidir. Enable kontrol girişine sahiptir ve aşırı akım, aşırı sıcaklık ile ters polarite korumaları içerir. DPAK (TO-252-3) SMD kılıftadır ve -40°C ile 85°C aralığında çalışır.
NCP5501DT33RKG IC REG LINEAR 3.3V 500MA DPAK
| Ürün Kodu | NCP5501DT33RKG |
| Control Features | Enable |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 500 µA |
| Current - Supply (Max) | 20 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| PSRR | 75dB ~ 70dB (120hZ ~ 10kHz) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.7V @ 500mA |
NCP5501DT33RKG Datasheet dosyasına ulaşmak için tıklayınız.
