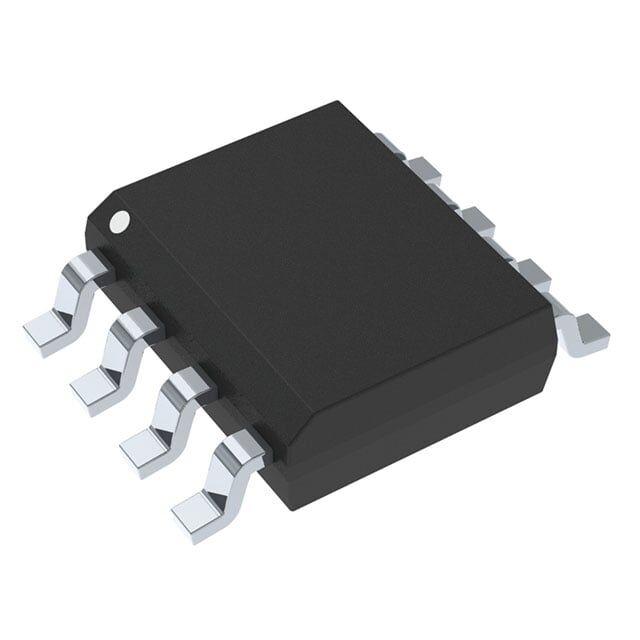

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
onsemi NCP3020ADR2G 8-SOIC Buck Regülatör Kontrol Entegre Devre
NCP3020ADR2G
- Üretici
- onsemi
- Kategori
- Kılıf / Paket
- —
onsemi NCP3020ADR2G 8-SOIC Buck Regülatör Kontrol Entegre Devre Hakkında
NCP3020ADR2G, onsemi üretimi buck (step-down) DC-DC regülatör kontrol entegresidir ve 8-SOIC SMD pakettedir. 4.7V–28V besleme aralığında çalışır, 300kHz anahtarlama frekansı ve %84 maksimum duty cycle değerine sahiptir. Tek çıkışlıdır ve -40°C ile 125°C (TJ) çalışma sıcaklık aralığını destekler.
NCP3020ADR2G IC REG CTRLR BUCK 8SOIC
| Ürün Kodu | NCP3020ADR2G |
| Clock Sync | No |
| Control Features | - |
| Duty Cycle (Max) | 84% |
| Frequency - Switching | 300kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Part Status | Active |
| Serial Interfaces | - |
| Supplier Device Package | 8-SOIC |
| Synchronous Rectifier | Yes |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.7V ~ 28V |
