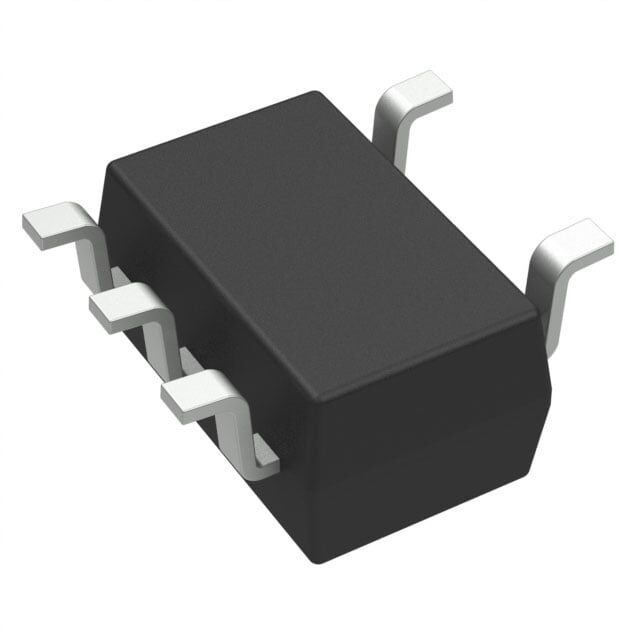

onsemi NCP164CSN330T1G 3.3V 300mA TSOT-23-5 Entegre Devre
69,73 TL
7,29 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCP164CSN330T1G
Stok Adedi
1
Fiyat
1,30 USD + KDV
NCP164CSN330T1G, 5V maksimum girişten 3.3V sabit pozitif çıkış veren 300mA lineer regülatör entegresidir. Enable kontrol girişine sahiptir ve 40 µA tipik boşta akım ile çalışır. TSOT-23-5 (SOT-23-5 Thin) SMD kılıfta, aşırı akım ve aşırı sıcaklık korumaları içerir.
NCP164CSN330T1G IC REG LINEAR 3.3V 300MA 5TSOP
| Ürün Kodu | NCP164CSN330T1G |
| Control Features | Enable |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 40 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 83dB ~ 61dB (100Hz ~ 100kHz) |
| Supplier Device Package | 5-TSOP |
| Voltage - Input (Max) | 5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.17V @ 300mA |
NCP164CSN330T1G Datasheet dosyasına ulaşmak için tıklayınız.
