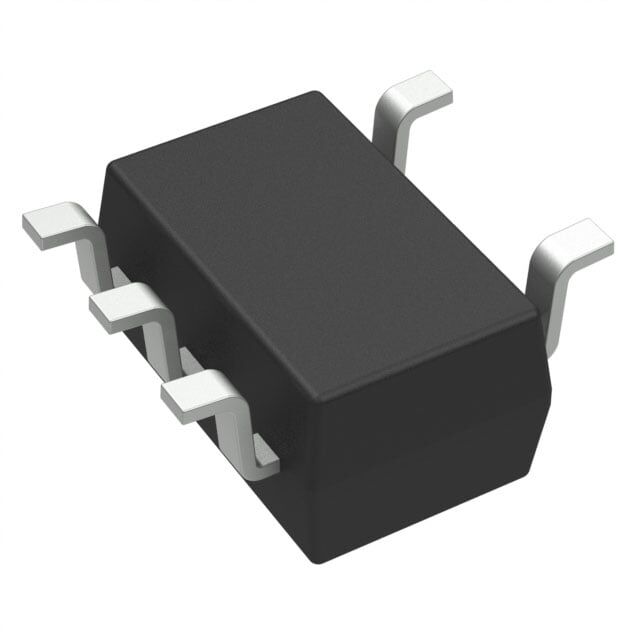

onsemi NCP164CSN180T1G SOT-23-5 LDO 1.8V 300mA Entegre Devre
68,02 TL
7,12 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
NCP164CSN180T1G
Stok Adedi
0
Fiyat
1,27 USD + KDV
NCP164CSN180T1G, 1.8V sabit çıkışlı, 300mA akım sağlayan lineer (LDO) regülatördür. Enable kontrol girişine sahiptir ve aşırı akım ile aşırı sıcaklık korumaları içerir. SOT-23-5 (TSOT-23-5) SMD pakettedir, maksimum 5V giriş ile çalışır.
NCP164CSN180T1G IC REG LINEAR 1.8V 300MA 5TSOP
| Ürün Kodu | NCP164CSN180T1G |
| Control Features | Enable |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 40 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 83dB ~ 61dB (100Hz ~ 100kHz) |
| Supplier Device Package | 5-TSOP |
| Voltage - Input (Max) | 5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage Dropout (Max) | 0.255V @ 300mA |
NCP164CSN180T1G Datasheet dosyasına ulaşmak için tıklayınız.
