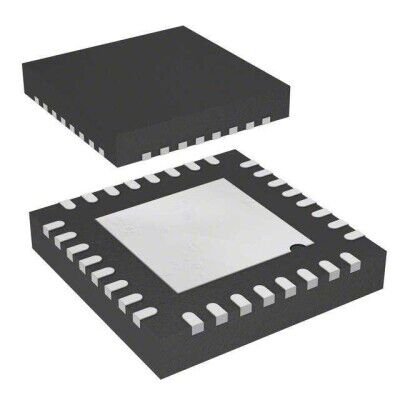

NXP PCAL6524HEHP 32-UFQFN (5x5) I/O Expander Entegre Devre
155,23 TL
16,24 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
PCAL6524HEHP
Stok Adedi
0
Fiyat
2,89 USD + KDV
NXP PCAL6524HEHP, I2C arayüzlü 24 I/O hatlı I/O expander entegresidir ve 1 MHz saat frekansını destekler. 1.65V ile 5.5V besleme aralığında çalışır, kesme çıkışı ve POR özelliği bulunur. 32-UFQFN Exposed Pad (32-HUQFN 5x5) SMD kılıftadır.
PCAL6524HEHP 32-UFQFN Exposed Pad kılıfta üretilmiştir. I/O Expander 24 I2C 1 MHz 32-HUQFN (5x5)
| Ürün Kodu | PCAL6524HEHP |
| DigiKey Programmable | Not Verified |
| Number of I/O | 24 |
| Interface | I2C |
| Interrupt Output | Yes |
| Features | POR |
| Output Type | Open Drain, Push-Pull |
| Current - Output Source/Sink | - |
| Clock Frequency | 1 MHz |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-UFQFN Exposed Pad |
| Supplier Device Package | 32-HUQFN (5x5) |
PCAL6524HEHP Datasheet dosyasına ulaşmak için tıklayınız.
