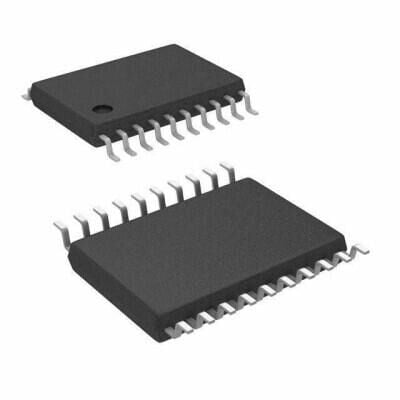

NXP LPC804M101JDH20FP 20-TSSOP Entegre Devre
145,04 TL
15,17 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
LPC804M101JDH20FP, ARM Cortex-M0+ çekirdekli 32-bit tek çekirdekli mikrodenetleyicidir ve 20-TSSOP kılıftadır. 15MHz hız, 32KB Flash ve 4KB RAM içerir; 1.71V-3.6V besleme aralığında çalışır. I2C, SPI, UART/USART haberleşme birimleri ve 12-bit ADC (12 kanal) desteği bulunur.
LPC804M101JDH20FP 20-TSSOP (0.173", 4.40mm Width) kılıfta üretilmiştir. ARM® Cortex®-M0+ LPC80xM Microcontroller IC 32-Bit Single-Core 15MHz 32KB (32K x 8) FLASH 20-TSSOP
| Ürün Kodu | LPC804M101JDH20FP |
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 15MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 12x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 20-TSSOP |
| Number of I/O | 17 |
| DigiKey Programmable | Not Verified |
LPC804M101JDH20FP Datasheet dosyasına ulaşmak için tıklayınız.
