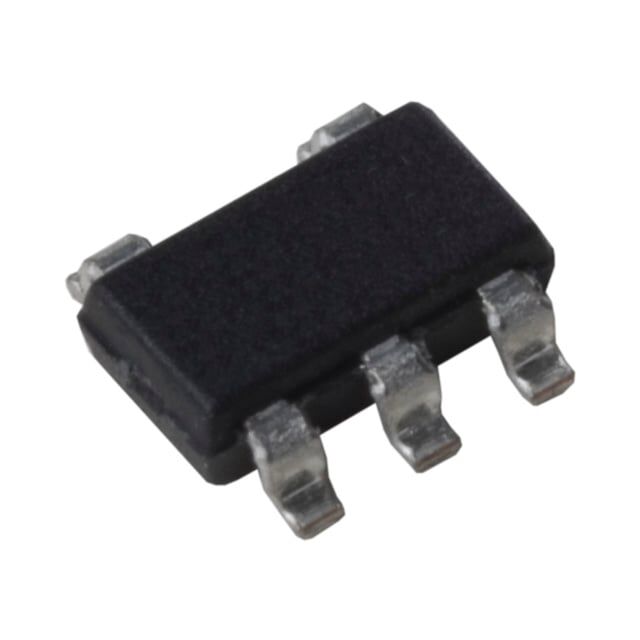

Microchip MIC5504-1.2YM5-TR SOT-23-5 1.2V 300mA Entegre Devre
12,51 TL
1,31 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
MIC5504-1.2YM5-TR
Stok Adedi
0
Fiyat
0,23 USD + KDV
MIC5504-1.2YM5-TR, 1.2V sabit çıkışlı, 300mA lineer regülatör entegresidir. SOT-23-5 (SC-74A/SOT-753) SMD kılıfta olup enable pini, aşırı akım ve aşırı sıcaklık korumaları içerir. Maksimum 5.5V giriş gerilimi ve 300mA’de 0.38V tipik dropout değeriyle çalışır.
MIC5504-1.2YM5-TR IC REG LINEAR 1.2V 300MA SOT23-5
| Ürün Kodu | MIC5504-1.2YM5-TR |
| Control Features | Enable |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 65 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SC-74A, SOT-753 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 60dB (1kHz) |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage Dropout (Max) | 0.38V @ 300mA |
MIC5504-1.2YM5-TR Datasheet dosyasına ulaşmak için tıklayınız.
