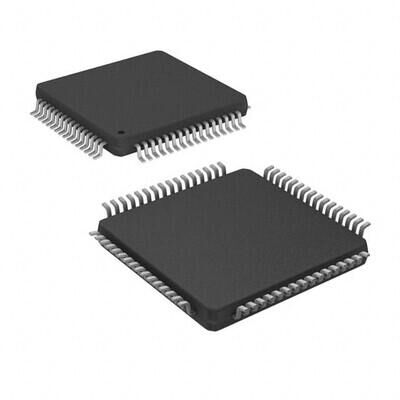

Microchip AVR64DB64T-I/PT 8-Bit MCU 64KB Flash 64-TQFP Entegre Devre
171,59 TL
17,95 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
AVR64DB64T-I/PT
Stok Adedi
1
Fiyat
3,21 USD + KDV
Microchip AVR64DB64T-I/PT, AVR çekirdekli 8-bit mikrodenetleyicidir; 64KB Flash ve 8KB RAM içerir. I²C, SPI ve UART/USART haberleşme arayüzlerini destekler, 54 I/O sunar. 1.8V-5.5V besleme aralığında çalışır ve 64-TQFP (10x10) SMD pakettedir.
AVR64DB64T-I/PT IC MCU 8BIT 64KB FLASH 64TQFP
| Ürün Kodu | AVR64DB64T-I/PT |
| Connectivity | I²C, SPI, UART/USART |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Data Converters | A/D 22x12b; D/A 1x10b |
| EEPROM Size | 512 x 8 |
| Mounting Type | Surface Mount |
| Number of I/O | 54 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 64-TQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | Flash |
| RAM Size | 8K x 8 |
| Speed | 24MHz |
| Supplier Device Package | 64-TQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
Bu ürüne ilk yorumu siz yapın!
