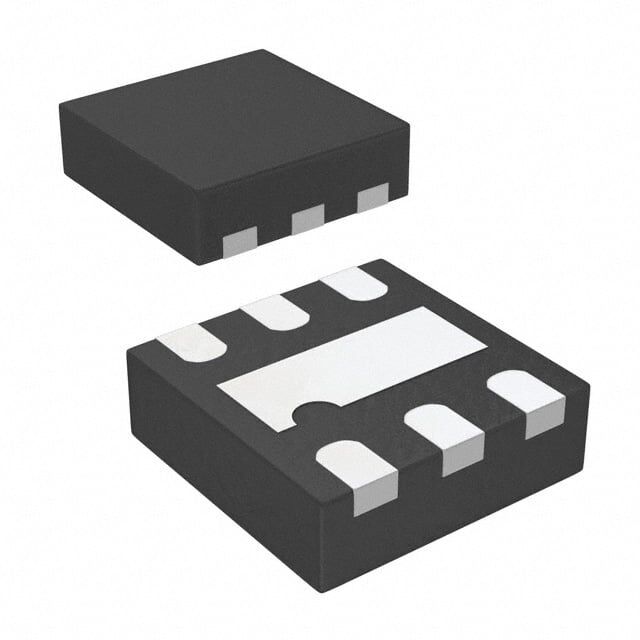

MIC5319-3.3YML-TR Microchip 3.3V 500mA 6-TMLF Entegre Devre
151,49 TL
15,85 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
MIC5319-3.3YML-TR
Stok Adedi
0
Fiyat
2,83 USD + KDV
MIC5319-3.3YML-TR, 5.5V’a kadar girişten sabit 3.3V pozitif çıkış veren 500mA lineer LDO regülatördür. Enable kontrol girişine sahiptir, 150 µA tipik boşta akım ve 500mA’de 0.4V maksimum dropout değeri sunar. 6-TMLF (2x2) SMD pakette, aşırı akım ve aşırı sıcaklık korumalıdır.
MIC5319-3.3YML-TR IC REG LINEAR 3.3V 500MA 6TMLF
| Ürün Kodu | MIC5319-3.3YML-TR |
| Control Features | Enable |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 6-VDFN Exposed Pad, 6-TMLF® |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 70dB ~ 60dB (1kHz ~ 10kHz) |
| Supplier Device Package | 6-TMLF® (2x2) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.4V @ 500mA |
MIC5319-3.3YML-TR Datasheet dosyasına ulaşmak için tıklayınız.
