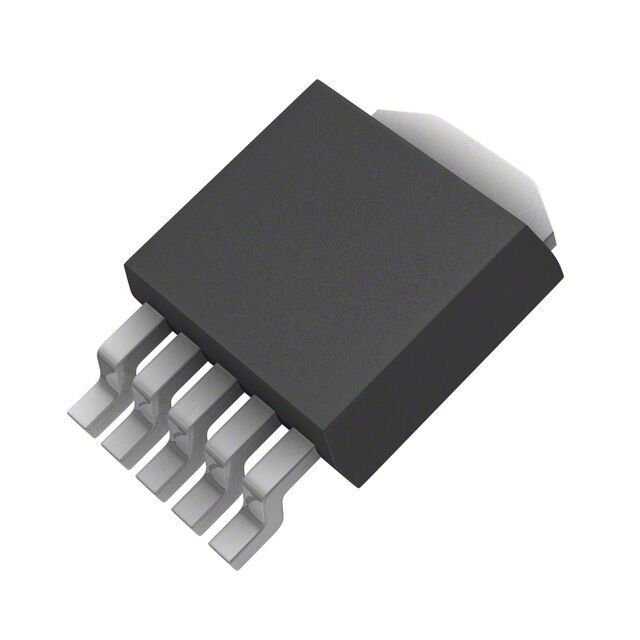

MIC35302WD-TR Microchip TO-252-5 3A Ayarlanabilir LDO Entegre Devre
118,85 TL
12,43 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
MIC35302WD-TR
Stok Adedi
0
Fiyat
2,21 USD + KDV
MIC35302WD-TR, 3A çıkış akımı sağlayan pozitif ayarlanabilir lineer (LDO) regülatör entegresidir. 6V maksimum giriş, 1.24V–5.4V arası ayarlanabilir çıkış ve Enable kontrol özelliği sunar. TO-252-5 (DPAK) SMD kılıfta olup aşırı akım, aşırı sıcaklık ve ters polarite korumalarına sahiptir.
MIC35302WD-TR IC REG LINEAR POS ADJ 3A TO252-5
| Ürün Kodu | MIC35302WD-TR |
| Control Features | Enable |
| Current - Output | 3A |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-252-6, DPak (5 Leads + Tab) |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| PSRR | - |
| Supplier Device Package | TO-252-5 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | 5.4V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage Dropout (Max) | 0.6V @ 3A |
MIC35302WD-TR Datasheet dosyasına ulaşmak için tıklayınız.
