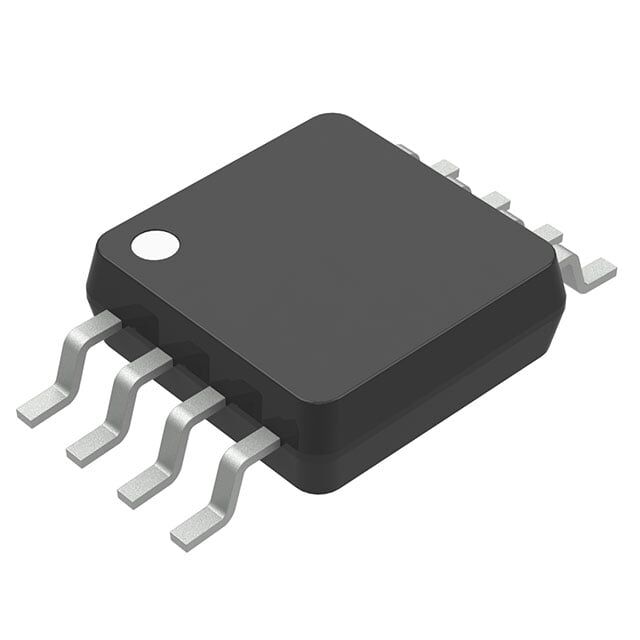

MCP4561T-104E/MS Microchip 100k I2C 8-MSOP Entegre Devre
102,26 TL
10,70 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Marka
Stok Kodu
MCP4561T-104E/MS
Stok Adedi
0
Fiyat
1,90 USD + KDV
MCP4561T-104E/MS, Microchip üretimi 100kΩ değerinde, I²C arayüzlü, non-volatile dijital potansiyometredir. 257 tap çözünürlük, seçilebilir adres ve mute özelliği sunar. 1.8V–5.5V besleme aralığında çalışır ve 8-MSOP SMD pakettedir.
MCP4561T-104E/MS IC DGTL POT 100KOHM 257TAP 8MSOP
| Ürün Kodu | MCP4561T-104E/MS |
| Configuration | Potentiometer |
| Features | Mute, Selectable Address |
| Interface | I²C |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Number of Taps | 257 |
| Operating Temperature | -40°C ~ 125°C |
| Part Status | Active |
| Resistance (Ohms) | 100k |
| Resistance - Wiper (Ohms) (Typ) | 75 |
| Supplier Device Package | 8-MSOP |
| Taper | Linear |
| Temperature Coefficient (Typ) | 150ppm/°C |
| Tolerance | ±20% |
| Voltage - Supply | 1.8V ~ 5.5V |
MCP4561T-104E/MS Datasheet dosyasına ulaşmak için tıklayınız.
