LR8N3-G Microchip TO-92-3 Ayarlanabilir Pozitif Regülatör Entegre Devre
62,59 TL
6,55 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LR8N3-G
Stok Adedi
1
Fiyat
1,18 USD + KDV

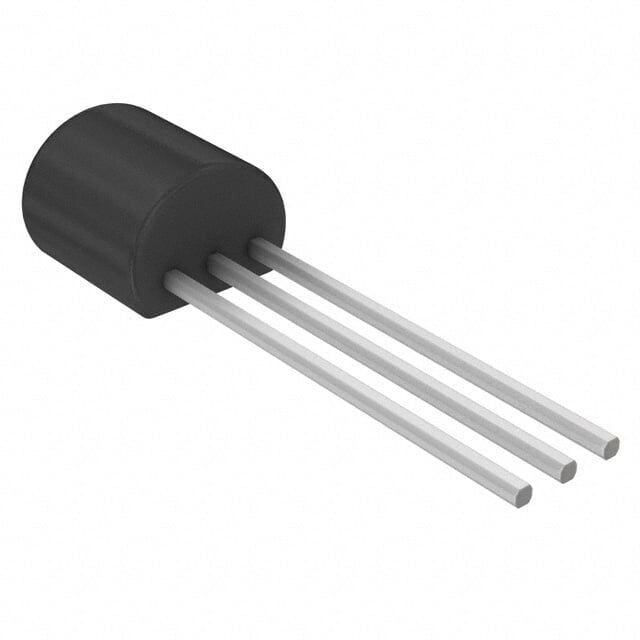

LR8N3-G, Microchip üretimi TO-92-3 kılıfta, pozitif ve ayarlanabilir lineer voltaj regülatör entegresidir. 450V maksimum giriş, 1.2V–438V çıkış aralığı ve 10mA çıkış akımı destekler. Aşırı akım ve aşırı sıcaklık korumasına sahiptir, -40°C ile 85°C aralığında çalışır.
LR8N3-G IC REG LIN POS ADJ 10MA TO92-3
| Ürün Kodu | LR8N3-G |
| Control Features | - |
| Current - Output | 10mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 60dB (120Hz) |
| Supplier Device Package | TO-92-3 |
| Voltage - Input (Max) | 450V |
| Voltage - Output (Max) | 438V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage Dropout (Max) | - |
LR8N3-G Datasheet dosyasına ulaşmak için tıklayınız.
