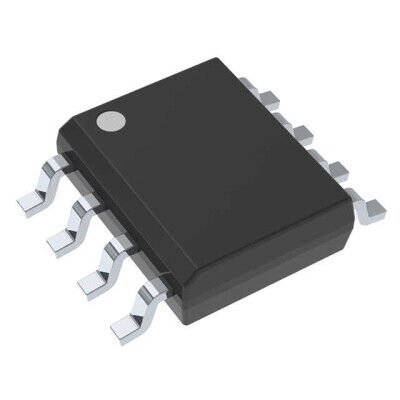

LMV358AQDRQ1 Texas Instruments 8-SOIC Çift Op-Amp Entegre Devre
44,11 TL
4,61 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LMV358AQDRQ1
Stok Adedi
1
Fiyat
0,82 USD + KDV
LMV358AQDRQ1, Texas Instruments üretimi 8-SOIC kılıfta, genel amaçlı çift (2 kanal) op-amp entegresidir. 2.5V–5.5V besleme aralığında çalışır, rail-to-rail çıkışlıdır ve 1MHz kazanç bant genişliği sunar. -40°C ile 125°C çalışma sıcaklık aralığına sahiptir.
LMV358AQDRQ1 IC OPAMP GP 2 CIRCUIT 8SOIC
| Ürün Kodu | LMV358AQDRQ1 |
| -3db Bandwidth | - |
| Amplifier Type | General Purpose |
| Current - Input Bias | 10 pA |
| Current - Output / Channel | 40 mA |
| Current - Supply | 70µA (x2 Channels) |
| Gain Bandwidth Product | 1 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Type | Rail-to-Rail |
| Part Status | Active |
| Slew Rate | 1.7V/µs |
| Supplier Device Package | 8-SOIC |
| Voltage - Input Offset | 1 mV |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 2.5 V |
LMV358AQDRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
Bu ürüne ilk yorumu siz yapın!
