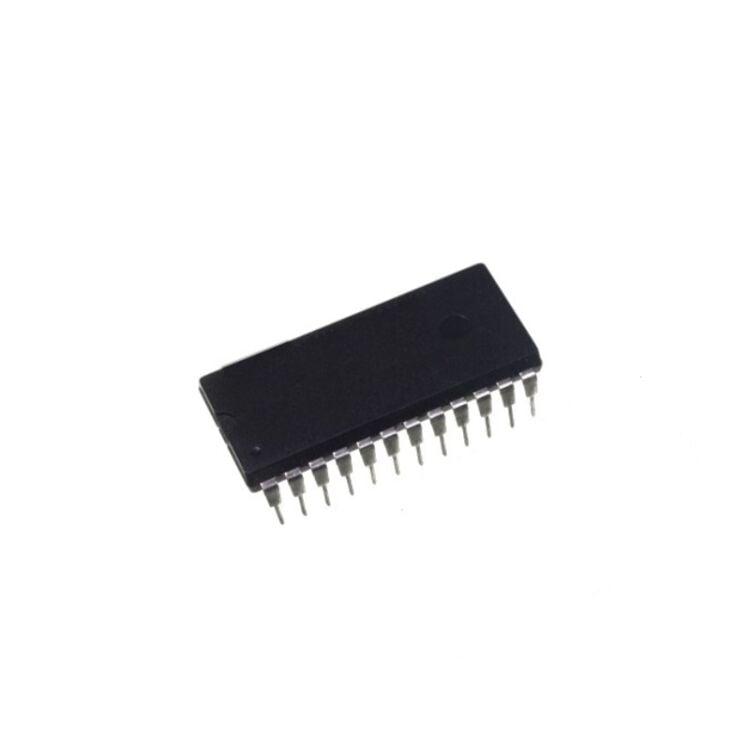

L6207N, PDIP-24 Entegre Devre Hakkında
L6207N, L6207, DMOS Dual Full Bridge Driver PWM Current Controller Entegre PDIP-24 Kılıf Entegre
| Montaj Tipi | Through Hole |
|---|---|
| Voltage - Supply | 8V ~ 52V |
| Çalışma Sıcaklığı | -25°C ~ 125°C (TJ) |
| Üretici Paket/Kılıf | 24-PowerDIP |
| Uygulamalar | DC Motors |
| Arayüz | Logic |
| Features | Bootstrap Circuit |
| Current - Output / Channel | 2.8A |
| Voltage - Load | 8V ~ 52V |
| Fault Protection | Current Limiting |
| Rds On (Typ) | 300mOhm |
| Çıkış Konfigürasyonu | Half Bridge (4) |
| Technology | DMOS |
| Load Type | Inductive |
| Current - Peak Output | 5.6A |
| Half-Bridge Drivers | 1 |
| Voltage Regulators | 1 |
| Parça Durumu | Obsolete |
| Catalog | PMIC - Full |
