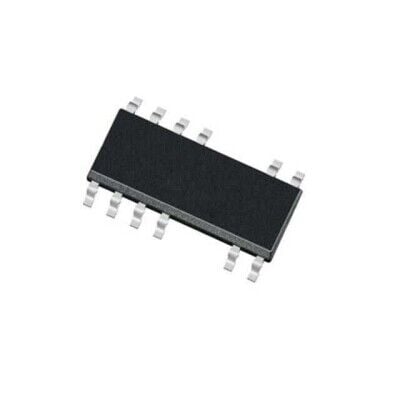

Infineon ICE5QR4780BGXUMA1 Flyback Offline Switch Entegre Devre
115,73 TL
12,11 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
ICE5QR4780BGXUMA1
Stok Adedi
1
Fiyat
2,19 USD + KDV
ICE5QR4780BGXUMA1, flyback topolojisi için dahili anahtarlamalı offline switch entegresidir. 800V breakdown gerilimi, 28W güç ve 10V-27V besleme aralığına sahiptir. SMD montaj için PG-DSO-12-21 (12-DSO) pakette, -40°C ile 125°C çalışma sıcaklığı aralığında sunulur.
ICE5QR4780BGXUMA1 IC OFFLINE SWITCH FLYBACK 12DSO
| Ürün Kodu | ICE5QR4780BGXUMA1 |
| Control Features | - |
| Duty Cycle | - |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Frequency - Switching | - |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Isolation | Isolated |
| Part Status | Active |
| Power (Watts) | 28 W |
| Supplier Device Package | PG-DSO-12-21 |
| Topology | Flyback |
| Voltage - Breakdown | 800V |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 27V |
