Görseller temsilidir, tam özellikler için datasheet'e bakınız.
G5NB-1A4-EL-HA DC24 24V 7A 4 Pin Röle Hakkında

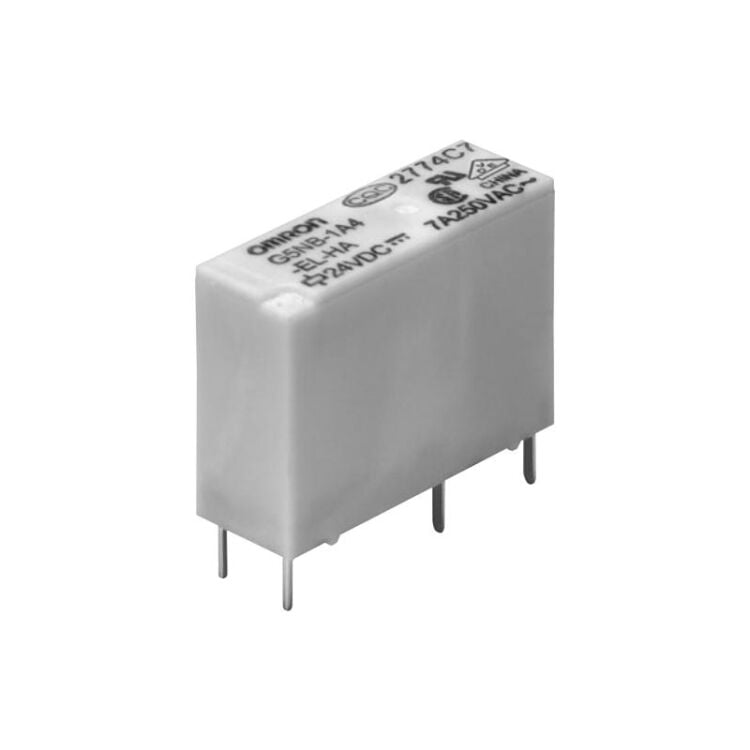

G5NB-1A4-EL-HA DC24 24V 7A 4 Pin Röle
| Montaj Tipi | Through Hole |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 85°C |
| Features | - |
| Contact Material | Silver Alloy Cadmium Free |
| Termination Style | PC Pin |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 7 A |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Switching Voltage | 250VAC 30VDC - Max |
| Coil Current | 8.3 mA |
| Coil Type | Non Latching |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
