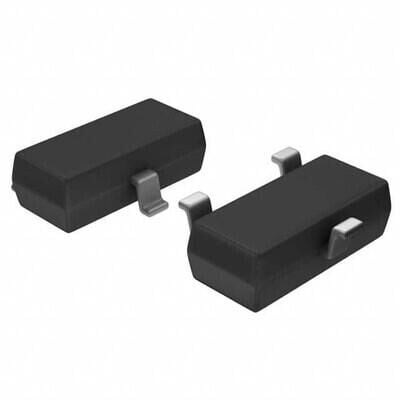

Diodes AZ431LANTR-E1 Ayarlanabilir Shunt Referans Entegre Devre
12,67 TL
1,33 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
AZ431LANTR-E1
Stok Adedi
1
Fiyat
0,24 USD + KDV
Diodes Incorporated AZ431LANTR-E1, ayarlanabilir shunt gerilim referansı entegresidir. 1.24V referans, ±0.5% tolerans ve 18V maksimum çıkış gerilimi ile SOT-23-3 (SOT23) pakette sunulur. Çalışma sıcaklığı aralığı -40°C ile 125°C arasındadır.
AZ431LANTR-E1 IC VREF SHUNT ADJ 0.5% SOT23
| Ürün Kodu | AZ431LANTR-E1 |
| Current - Cathode | 80 µA |
| Current - Output | 100 mA |
| Current - Supply | - |
| Mounting Type | Surface Mount |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Type | Adjustable |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Part Status | Active |
| Reference Type | Shunt |
| Supplier Device Package | SOT-23-3 |
| Temperature Coefficient | 20ppm/°C Typical |
| Tolerance | ±0.5% |
| Voltage - Input | - |
| Voltage - Output (Max) | 18 V |
| Voltage - Output (Min/Fixed) | 1.24V |
AZ431LANTR-E1 Datasheet dosyasına ulaşmak için tıklayınız.
