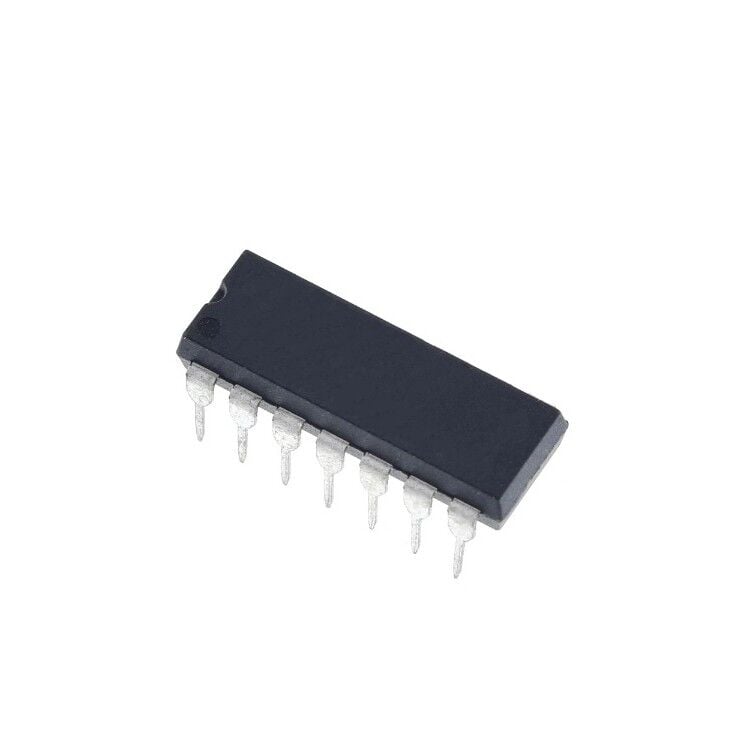

CD4070BE (CD4070) PDIP-14 Entegre Devre Hakkında
CD4070BE (CD4070) PDIP-14 GATE XOR 4CH 2-INP 14DIP Entegre Devre
| Montaj Tipi | Through Hole |
|---|---|
| Voltage - Supply | 3V ~ 18V |
| Çalışma Sıcaklığı | -55°C ~ 125°C |
| Üretici Paket/Kılıf | 14-PDIP |
| Features | - |
| Number of Circuits | 4 |
| Logic Type | XOR (Exclusive OR) |
| Number of Inputs | 2 |
| Current - Quiescent (Max) | 1 µA |
| Logic Level - High | 3.5V ~ 11V |
| Logic Level - Low | 1.5V ~ 4V |
| Product Category | Logic - Gates and Inverters |
| Low | 3.4mA |
| 50pF | 1 |
| 3.4mA | 1 |
| Max CL | 100ns @ 15V |
