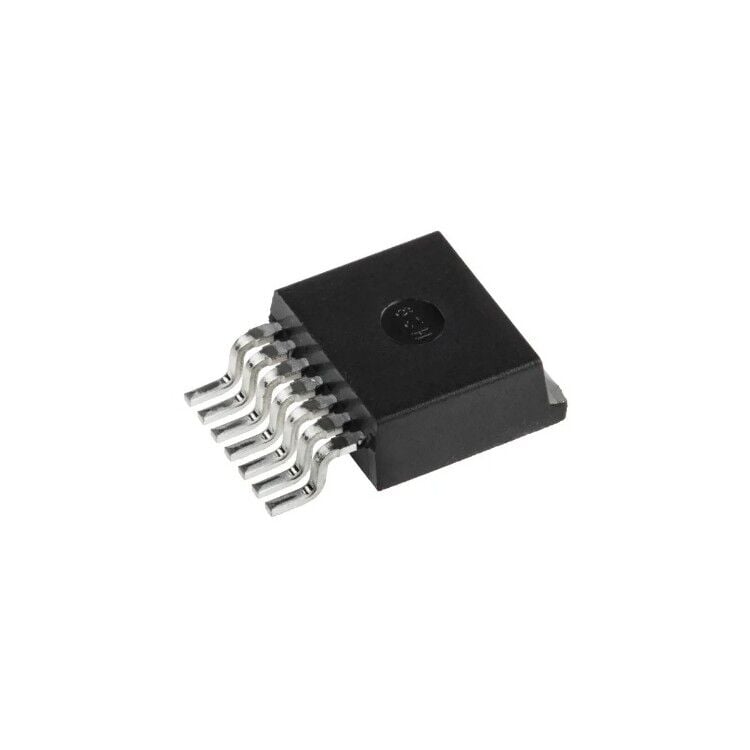

BTS7960B TO-263-7 Entegre Devre Hakkında
BTS7960B TO-263-15 NOVALITH 1/2 BRIDGE TO263-7 Entegre Devre
| Kılıf | TO-263-8 |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Voltage - Supply | 5.5V ~ 27.5V |
| Çalışma Sıcaklığı | -40°C ~ 150°C (TJ) |
| Üretici Paket/Kılıf | PG-TO263-7-1 |
| Uygulamalar | DC Motors |
| Arayüz | Logic |
| Features | Latch Function |
| Current - Output / Channel | 40A |
| Voltage - Load | 5.5V ~ 27.5V |
| Fault Protection | Current Limiting |
| Rds On (Typ) | 9mOhm LS |
| Çıkış Konfigürasyonu | Half Bridge |
| Technology | DMOS |
| Load Type | Inductive |
| Current - Peak Output | 60A |
| Product Category | PMIC - Full |
| Status Flag | 1 |
| UVLO | 1 |
| Half-Bridge Drivers | 1 |
| TO-263CA | 1 |
| General Purpose | 1 |
| 7mOhm HS | 1 |
