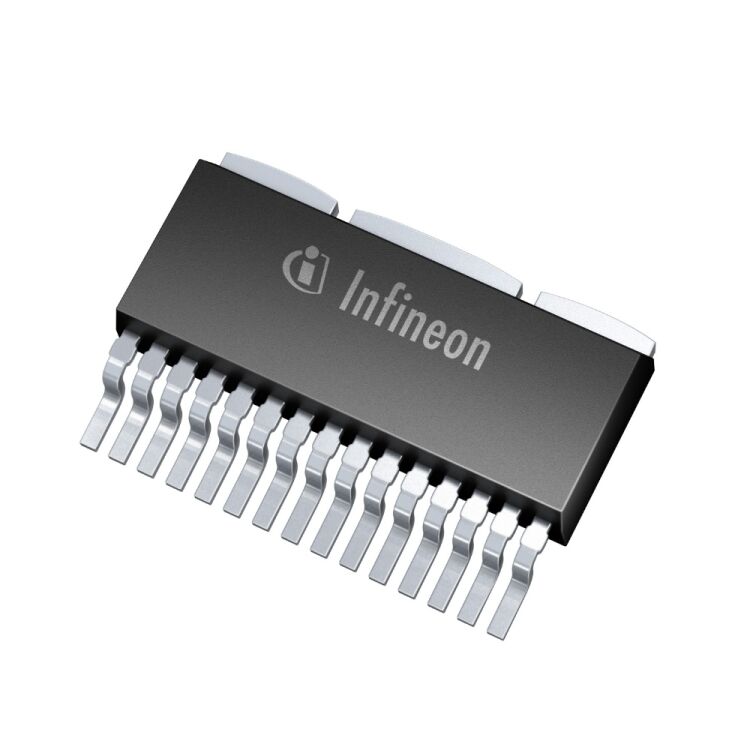

BTS7810K TO-263-15 Entegre Devre Hakkında
BTS7810K TO-263-16 BRIDGE DRIVER PAR TO263-15 Entegre Devre
| Kılıf | TO-263-18 (15 Leads + 3 Tabs) |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Voltage - Supply | 1.8V ~ 42V |
| Çalışma Sıcaklığı | -40°C ~ 150°C (TJ) |
| Üretici Paket/Kılıf | PG-TO263-15-1 |
| Uygulamalar | DC Motors |
| Arayüz | Logic |
| Features | Status Flag |
| Current - Output / Channel | - |
| Voltage - Load | 1.8V ~ 42V |
| Fault Protection | Open Load Detect |
| Rds On (Typ) | 14mOhm LS |
| Çıkış Konfigürasyonu | Half Bridge (2) |
| Technology | DMOS |
| Load Type | Inductive |
| Current - Peak Output | 42A |
| Product Category | PMIC - Full |
| UVLO | 1 |
| Half-Bridge Drivers | 1 |
| General Purpose | 1 |
| 26mOhm HS | 1 |
