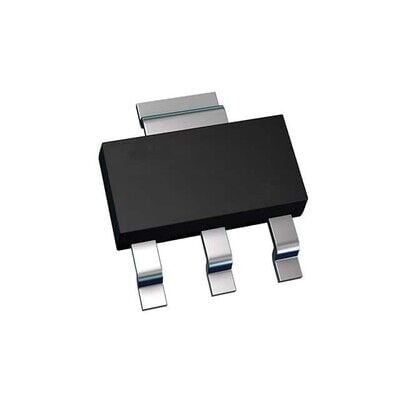

AZ1117IH-5.0TRG1 Diodes 5V 1A LDO SOT-223 Entegre Devre
19,02 TL
1,99 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
AZ1117IH-5.0TRG1
Stok Adedi
1
Fiyat
0,36 USD + KDV
AZ1117IH-5.0TRG1, Diodes Incorporated üretimi 5V sabit çıkışlı, pozitif lineer regülatör entegresidir. 15V’a kadar giriş gerilimi ile 1A çıkış akımı sağlar ve SOT-223-3 (TO-261) SMD pakettedir. Termal kapanma koruması bulunur, çalışma sıcaklığı -40°C ile 125°C arasındadır.
AZ1117IH-5.0TRG1 IC REG LINEAR 5V 1A SOT223
| Ürün Kodu | AZ1117IH-5.0TRG1 |
| Control Features | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-261-4, TO-261AA |
| Part Status | Active |
| Protection Features | Thermal Shutdown |
| PSRR | 70dB (120Hz) |
| Supplier Device Package | SOT-223-3 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 1.3V @ 800mA |
AZ1117IH-5.0TRG1 Datasheet dosyasına ulaşmak için tıklayınız.
