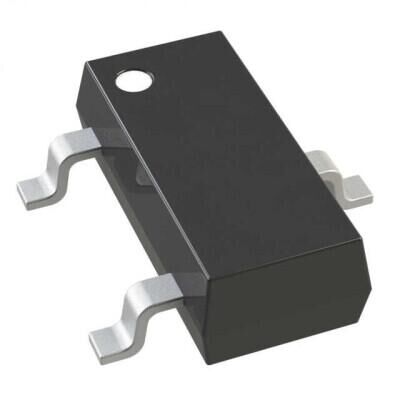

AP7375-50SA-7 TO-236-3, SC-59, SOT-23-3 Entegre Devre
AP7375-50SA-7
- Üretici
- Diodes Incorporated
- Kategori
- Kılıf / Paket
- —
AP7375-50SA-7 TO-236-3, SC-59, SOT-23-3 Entegre Devre Hakkında
AP7375-50SA-7 TO-236-3, SC-59, SOT-23-3 kılıfta üretilmiştir. Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3
| Ürün Kodu | AP7375-50SA-7 |
| Packaging | Cut Tape (CT) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 5 µA |
| Voltage - Input (Max) | 45V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Current Limit, Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.36V @ 100mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
AP7375-50SA-7 Datasheet dosyasına ulaşmak için tıklayınız.
